30kN10M Hydraulic Slewing Crane

30kN10M Hydraulic Slewing Crane

Specifications

1. Safety working load: 30kN

2. Hoisting height: 30m

3. Hoisting speed: 18m/min

4. Working radius: 2.9-10m

5. Slewing speed: 1r/min

6. Slewing angle: 360°

7. Luffing Time: ～38 s

8. Driving Type: Hydraulic

9. Motor

           Model: Y180L-4-H

           Power: 22kW

           Power source: AC380V/50Hz

           Protection type: IP44

           Insulation type: F

10. Design condition

           Heel: ＜5°

           Trim: ＜2°

Drawing of 30kN10M Hydraulic Slewing Crane

Testing Picture of 30kN10M Hydraulic Slewing Crane

Painting Image of 30kN10M Hydraulic Slewing Crane

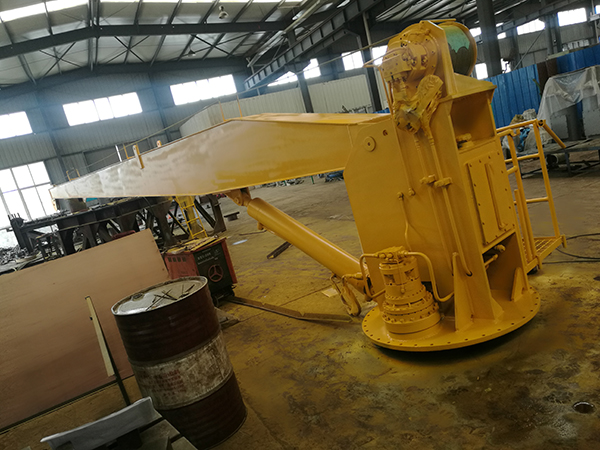

Finished Image of 30kN10M Hydraulic Slewing Crane

Delivery of 30kN10M Hydraulic Slewing Crane
