| Quantity: 0 pcs |
| Material: Aluminum |
| Type of watertight: 0.03MPa |
| Clear size: 1500*700mm |
| Certificate: DNV.GL |
1500*700 Quick Open Close Aluminum Watertight Door
Quick open close aluminum watertight door is made of high quality aluminum alloy and is easy to open. With exellent watertight performance, This product is used for superstructure of all kinds of aluminum vessels.

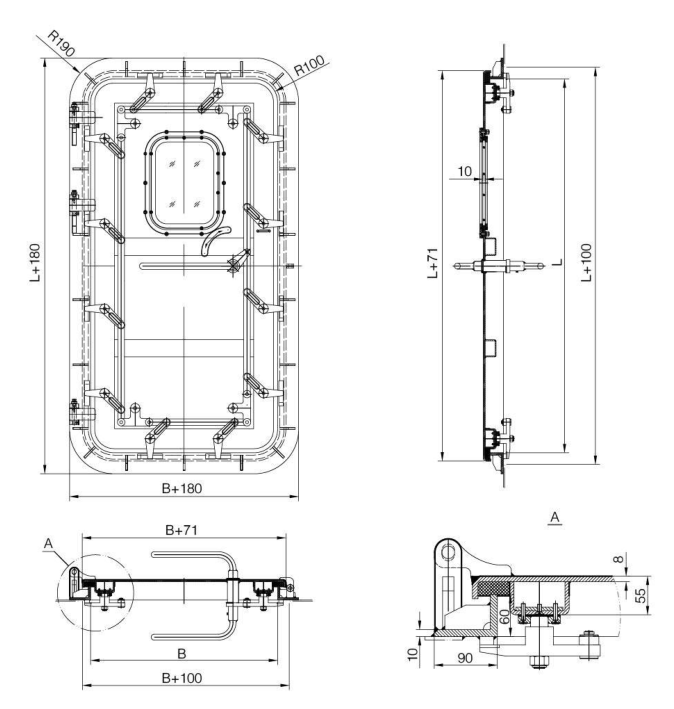

Drawing & Specifications:
| nominal size (mm) L*B*R100 | wallcut size(mm) (L+100)*(B+100)*R150 | external size(mm) (L+200)*(B+200)*R200 | external size of leaf (mm) (L+71)*(B+71)*R135.5 | Clip quantity | Hinge set | clear view size of round window |
| 1500*700 | 1600*700 | 1680*880 | 1571*771 | 10 | 3 | 350*250 |
Product PIcture
