| Quantity: 0 pcs |
| Material: Carbon Steel |
| Process Mode: Steam-Electric Heating |
| Work Pressure: 0.4MPa |
| Certificate: CCS |

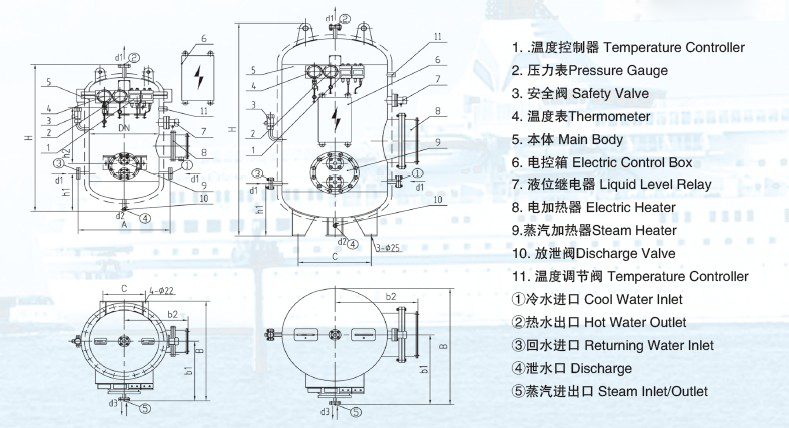

0.3 Marine Steam-Electric Heating Calorifier
Marine calorifier uses the fresh water in the fresh water pressure tank to supplement the tank, and is heated by electric heating or steam heating components for the whole ship.
Technical Specifications
| Capacity （m3） | Working Pressure（MPa） | Design Pressure（MPa） | Steam Pressure（MPa） | Water Inlet Temp.（℃） | Water Outlet Temp.（℃） |
| 0.3 | 0.4 | 0.45 | 0.3 | 15 | 65 |
